Features:
Very Low Insertion Loss
High Isolation
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength:C17~C63
Optical Path Epoxy Free
Telcordia 1221 Compliant
Wide Operating Temperature: From -40℃ to 85℃
High Reliability and Stability
Applications:
DWDM System
PON Networks
CATV Links
With DWDM SFP , DWDM XFP for a solution
Compliance:
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
ITU-T G.694.1
RoHS
1xN DWDM Mux/Demux Module
| Parameters | |
| Channel Space (GHz) | 100 | 200 |
| Channel Number | 1*4 | 1*8 | 1*16 | 1*4 | 1*8 | 1*16 |
| Center Wavelength (nm) | ITU Grid |
| Center Wavelength Accuracy (nm) | ± 0.05 | ± 0.1 |
| Channel Passband (@-0.5dB) (nm) | 0.22 | 0.5 |
| Fiber Type | SMF-28e with 900um loose tube or customer specified |
| IL (dB) | 1 | 1.5 | 2.2 | 1.7 | 2.9 | 3.8 |
| Passband Ripple (dB) | 0.35 | 0.4 | 0.5 | 0.35 | 0.4 | 0.5 |
| Isolation (dB) | Adjacent Channel | 25 | 28 |
| Non-Adjacent Channel | 40 |
| PDL (dB) | 0.2 |
| PMD (ps) | 0.1 |
| RL (dB) | 45 |
| Directivity (dB) | 50 |
| Maximum Optical Power (mw) | 300 |
| Operating Temperature (°C) | -40~85 |
| Storage Temperature (°C) | -40~85 |
| BOX Package (mm) | 100*80*10 or 140*115*18 |
| LGX Package | 1U,2U |
| 19’’ Rack mount Package | 1U |

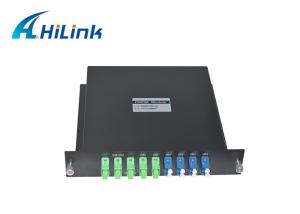

Product Pic:
Technician support:
We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
After-sales service
We have after service for 24 hours, promises to supply technical service or guide in anytime.
Our co-workers will be response clients's requirement in 12 hours after emergency happened.
Guarantee:
›& Brand new.
›& OEM/ODM is available.
›& 100% through quality test and aging test.
›& 3 years warranty (From the date of shipment).
